FACTORY DIRECT

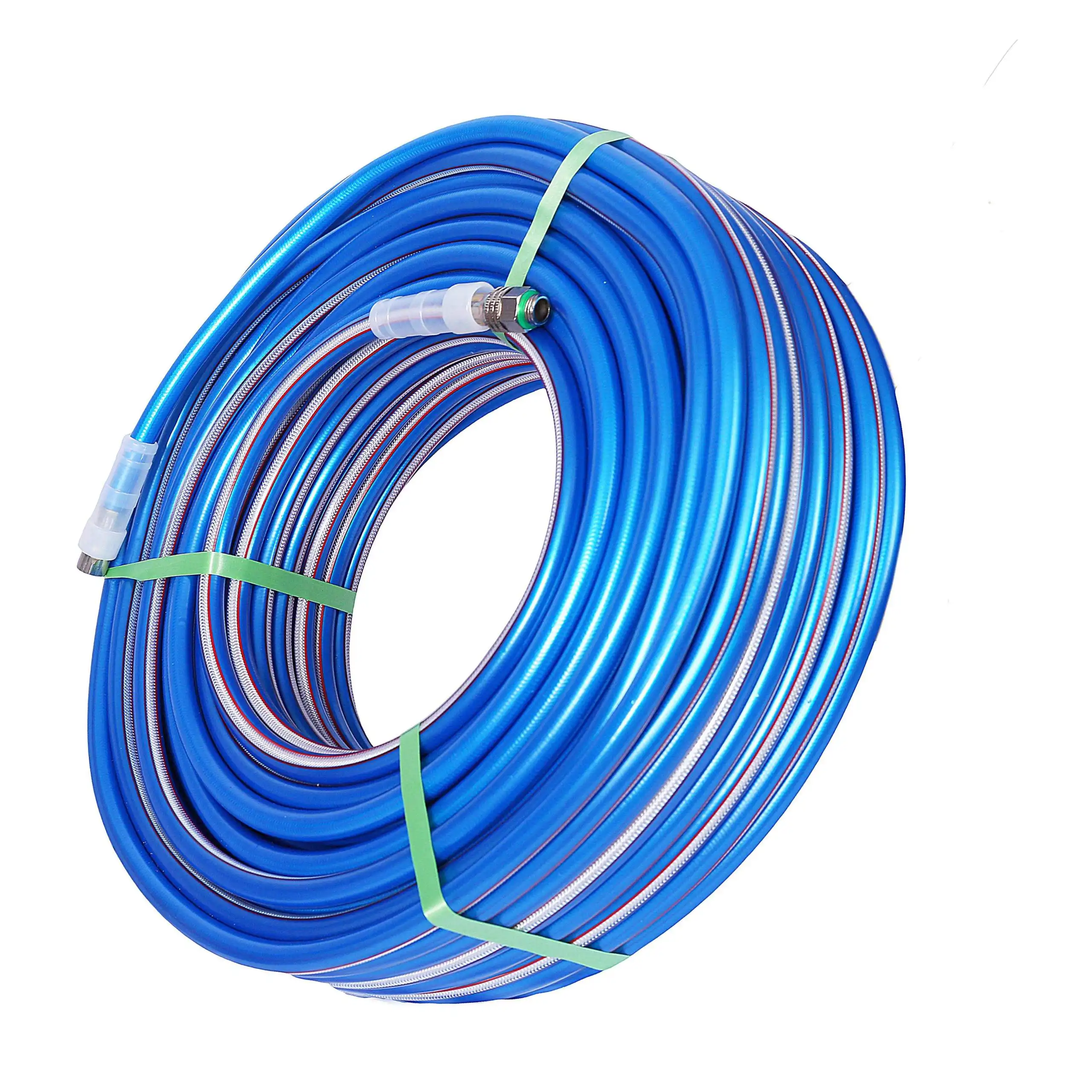

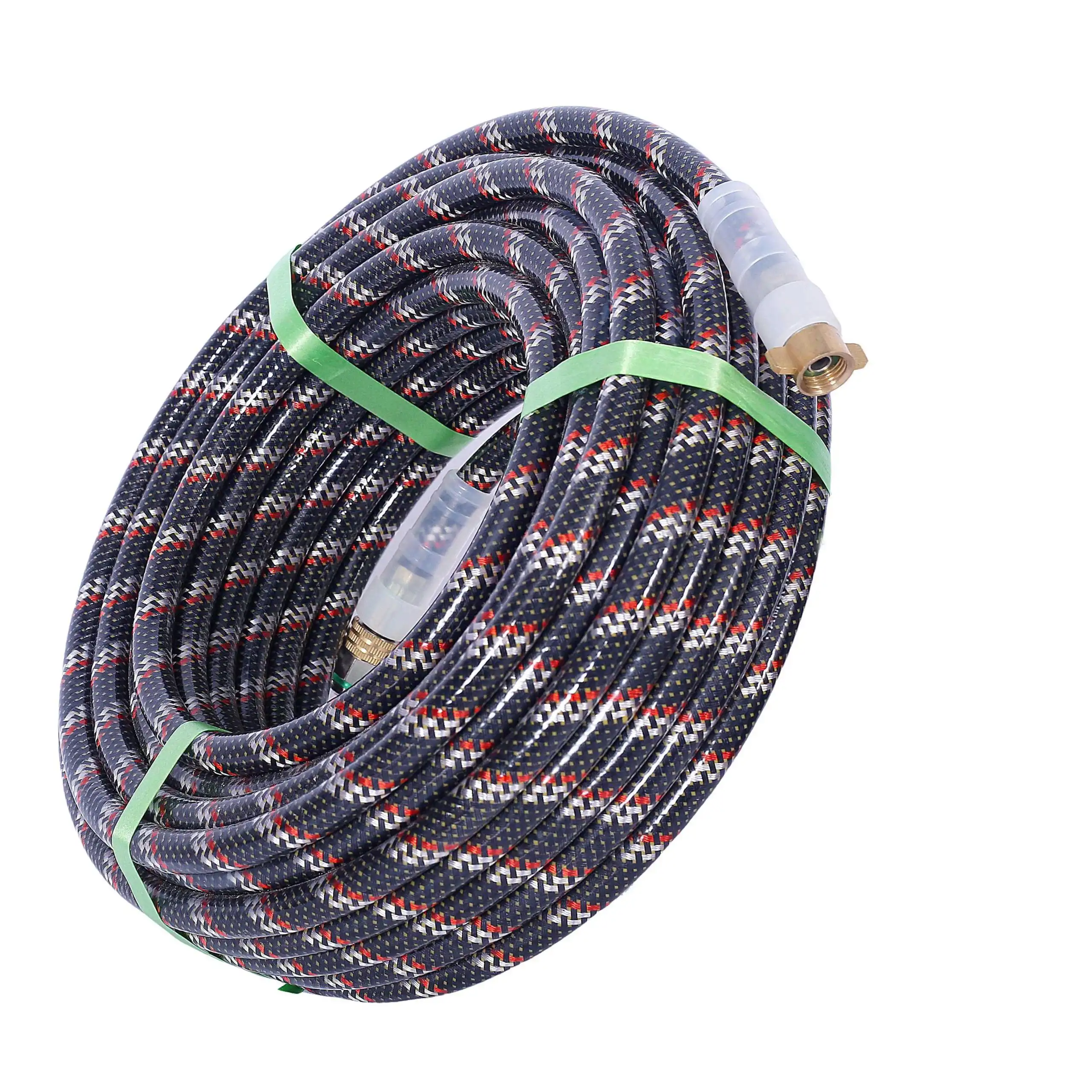

High Pressure Braided Spray Hose
B2B wholesale pricing · MOQ, lead time and freight quoted per specification
Factory Direct
OEM & ODM
Custom Length
Free Samples

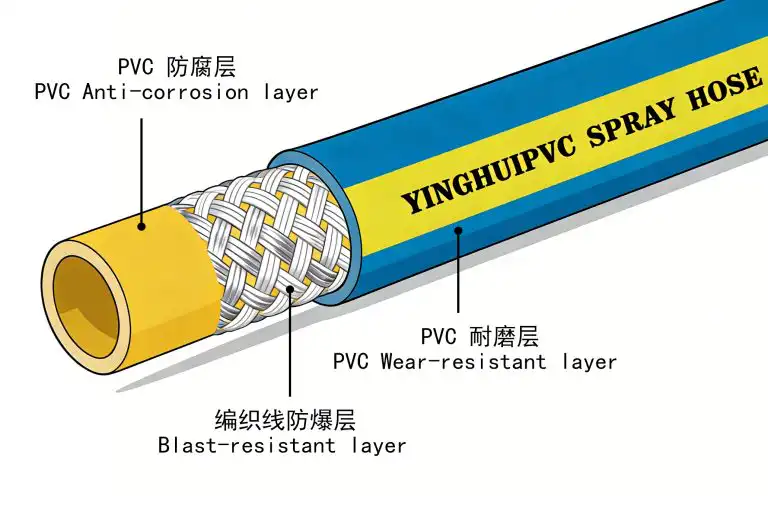

- Construction -
Three layers engineered for high pressure
Each layer has a defined job — an anti-corrosion bore, a braided blast-resistant reinforcement and a tough outer shell.
01
Inner — PVC Anti-Corrosion Layer
Smooth, chemical-resistant bore keeps flow fast and stands up to pesticide, fertilizer and cleaning agents.
02
Middle — Braided Blast-Resistant Layer
High-density polyester braiding (single or triple braid) carries the pressure — burst resistance up to 280 BAR.
03
Outer — PVC Wear-Resistant Layer
Abrasion and aging resistant shell protects against dragging, UV and rough outdoor conditions.
- Technical Data -
Specifications
Standard production program. Working pressure 40–60 BAR; burst pressure up to 280 BAR depending on size and grade.
| Size (Inch) | ID (mm) | OD (mm) | WP (BAR) | BP (BAR) | Length (m) | Weight (kg) |
|---|---|---|---|---|---|---|
| 1/4" | 6.5 | 11.5 | 60 | 200 | 100 | 9.0 |
| 1/4" | 6.5 | 12.0 | 60 | 250 | 100 | 10.0 |
| 1/4" | 6.5 | 12.5 | 60 | 300 | 100 | 11.0 |
| 5/16" | 8.5 | 13.0 | 60 | 180 | 100 | 11.0 |
| 5/16" | 8.5 | 13.5 | 60 | 230 | 100 | 12.5 |
| 5/16" | 8.5 | 14.0 | 60 | 280 | 100 | 14.4 |
| 3/8" | 10.0 | 15.0 | 60 | 180 | 100 | 15.0 |
| 3/8" | 10.0 | 16.0 | 60 | 200 | 100 | 16.0 |
| 1/2" | 13.0 | 18.0 | 50 | 180 | 100 | 21.0 |
| 1/2" | 13.0 | 19.0 | 40 | 200 | 100 | 23.0 |
*Length and coil weight can be customized. Printed markings on the hose are customized per production run

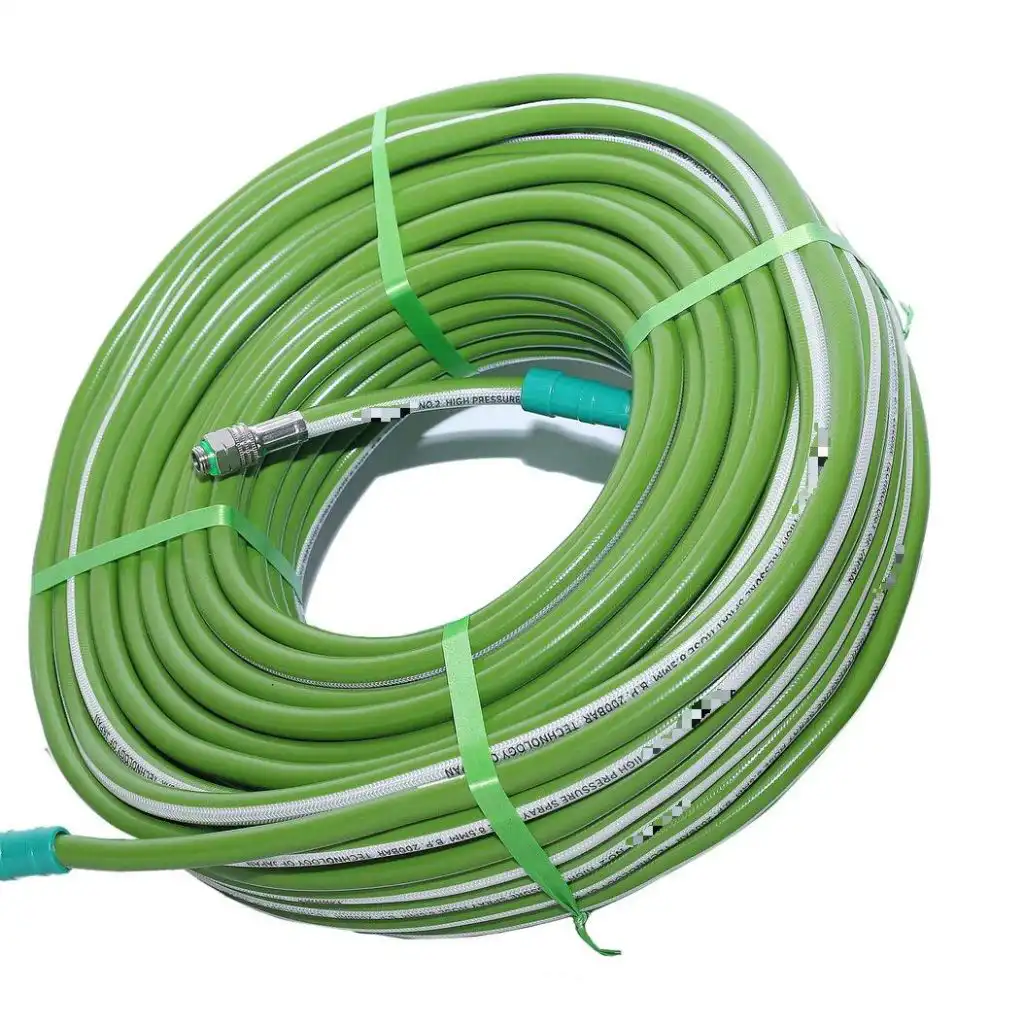

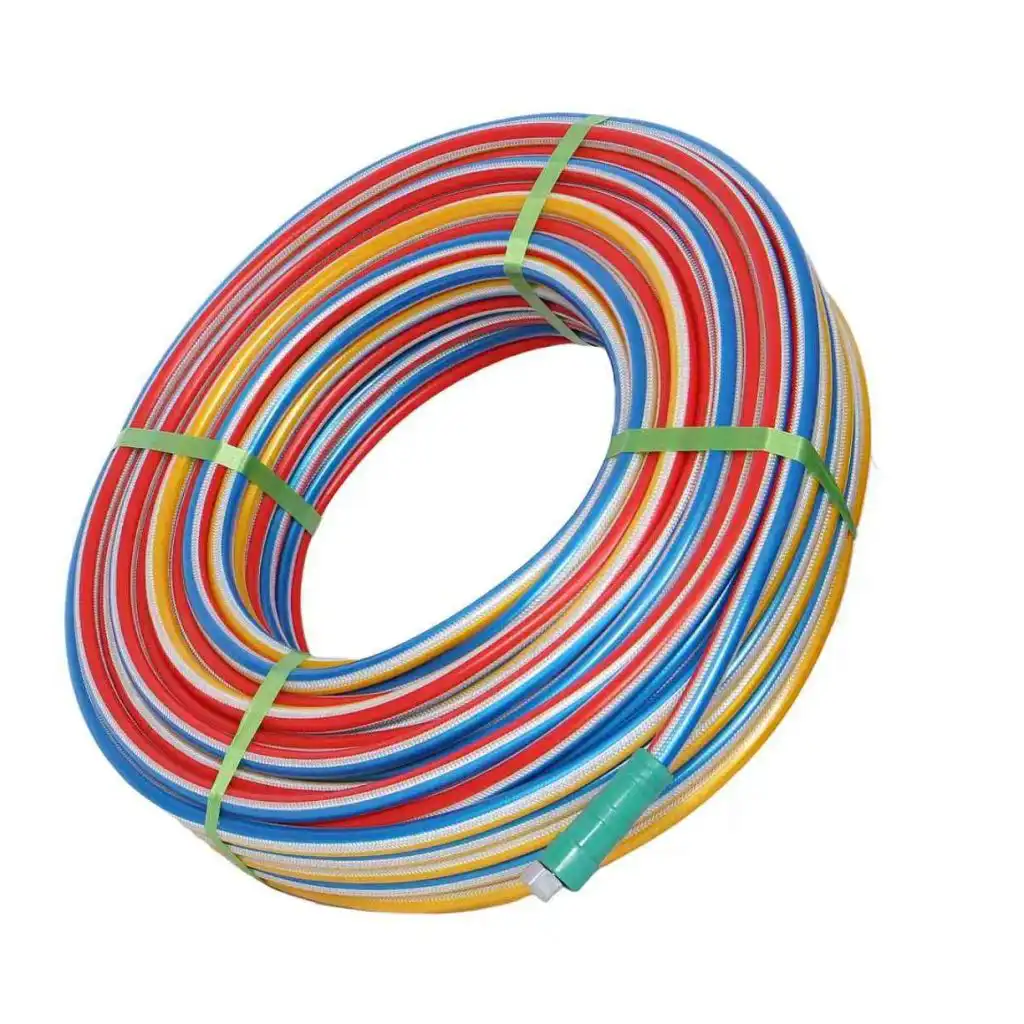

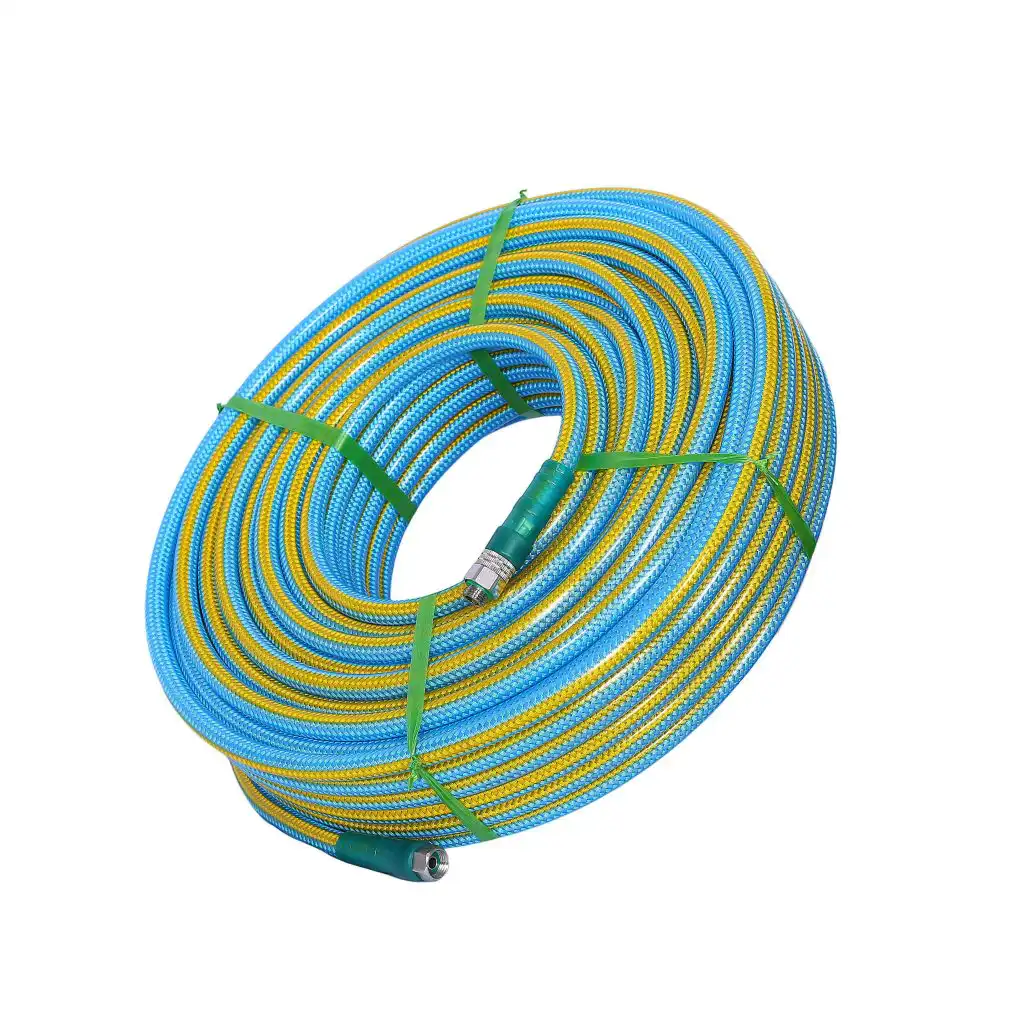

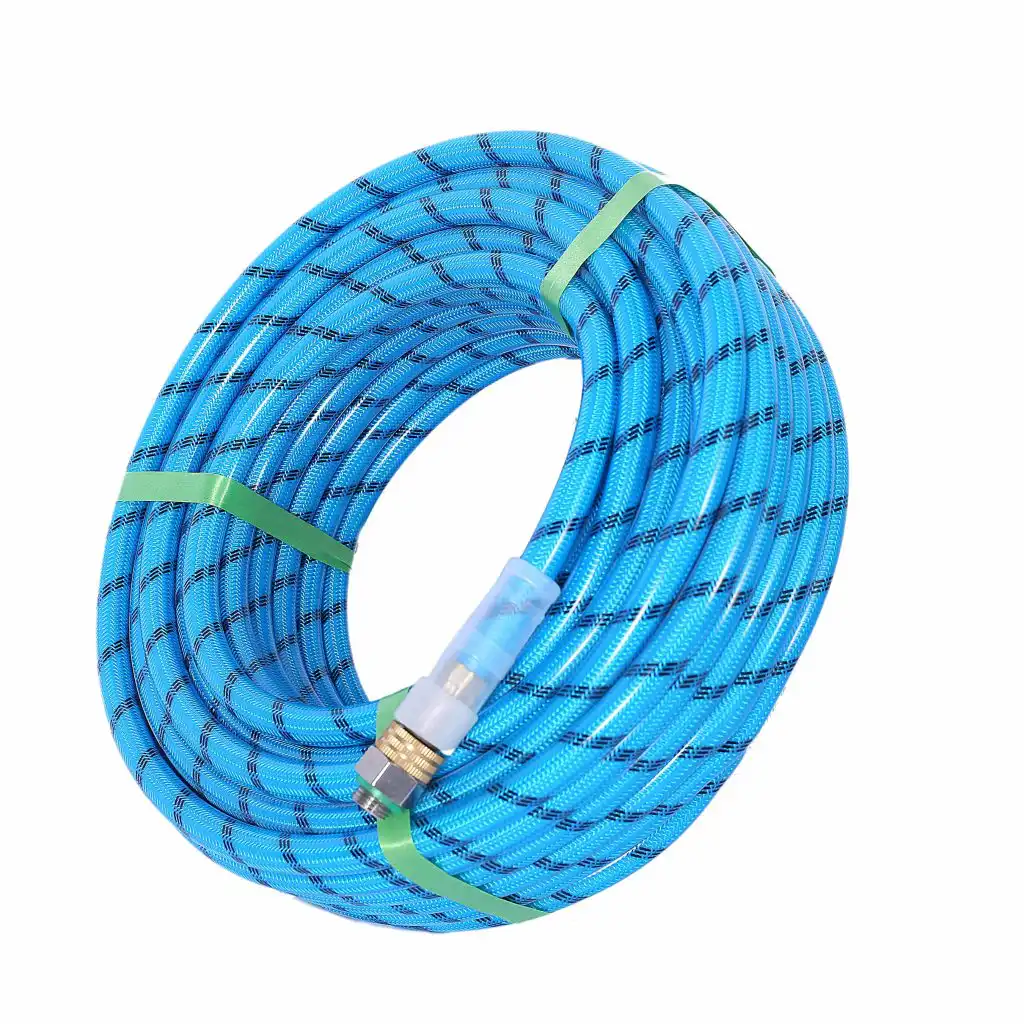

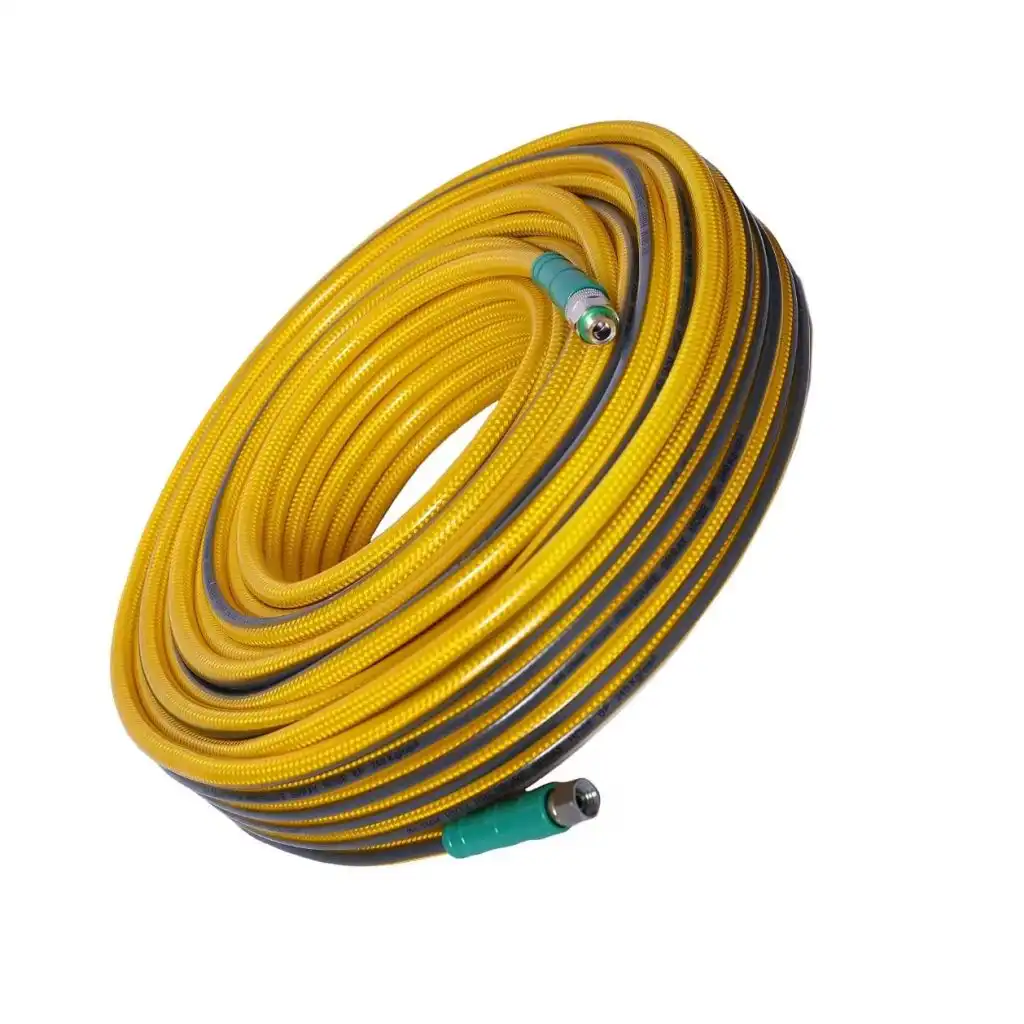

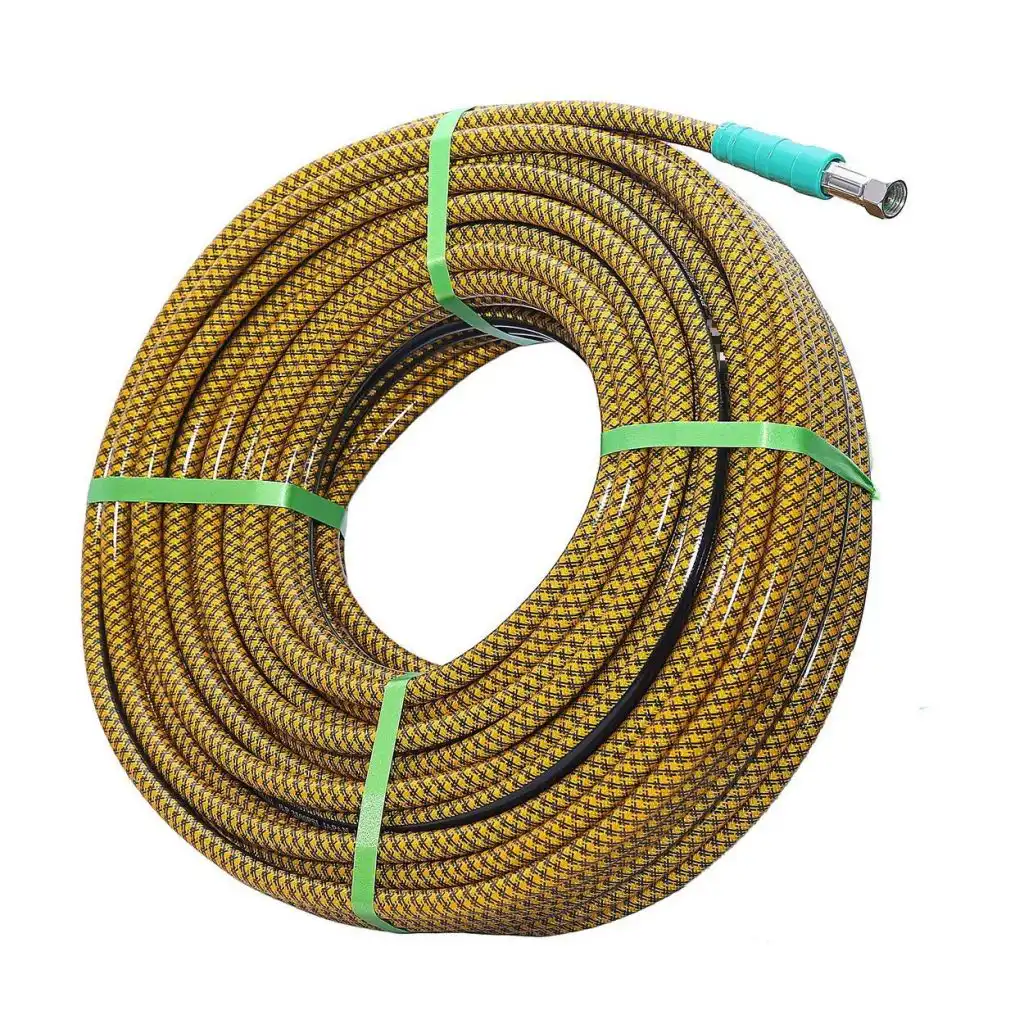

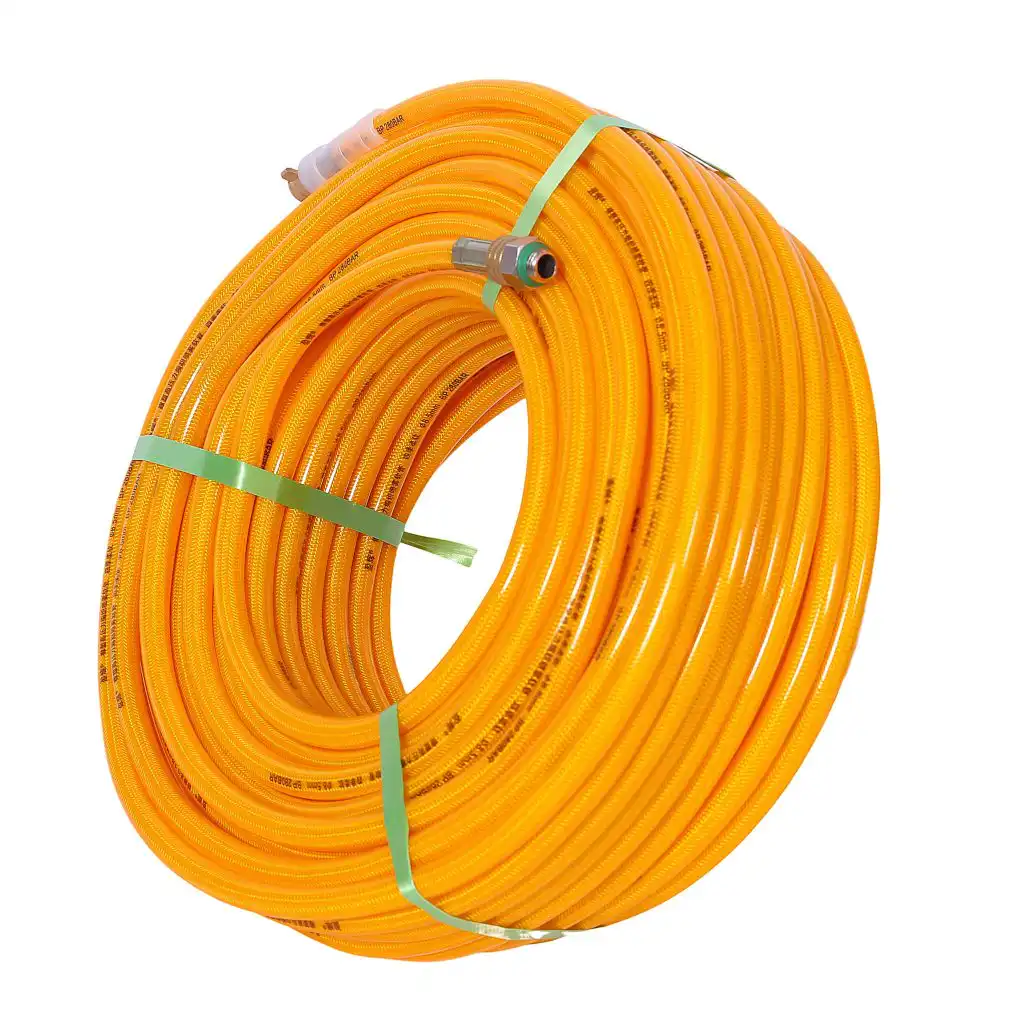

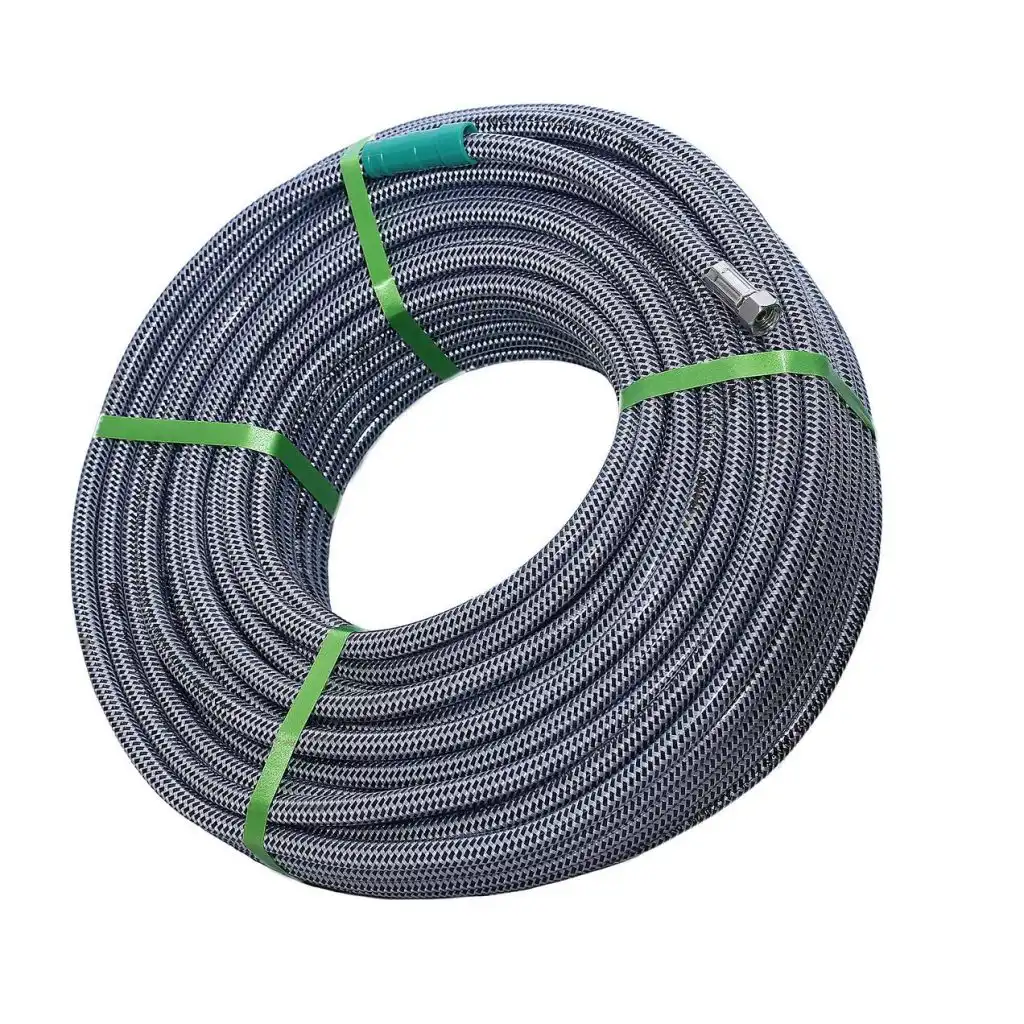

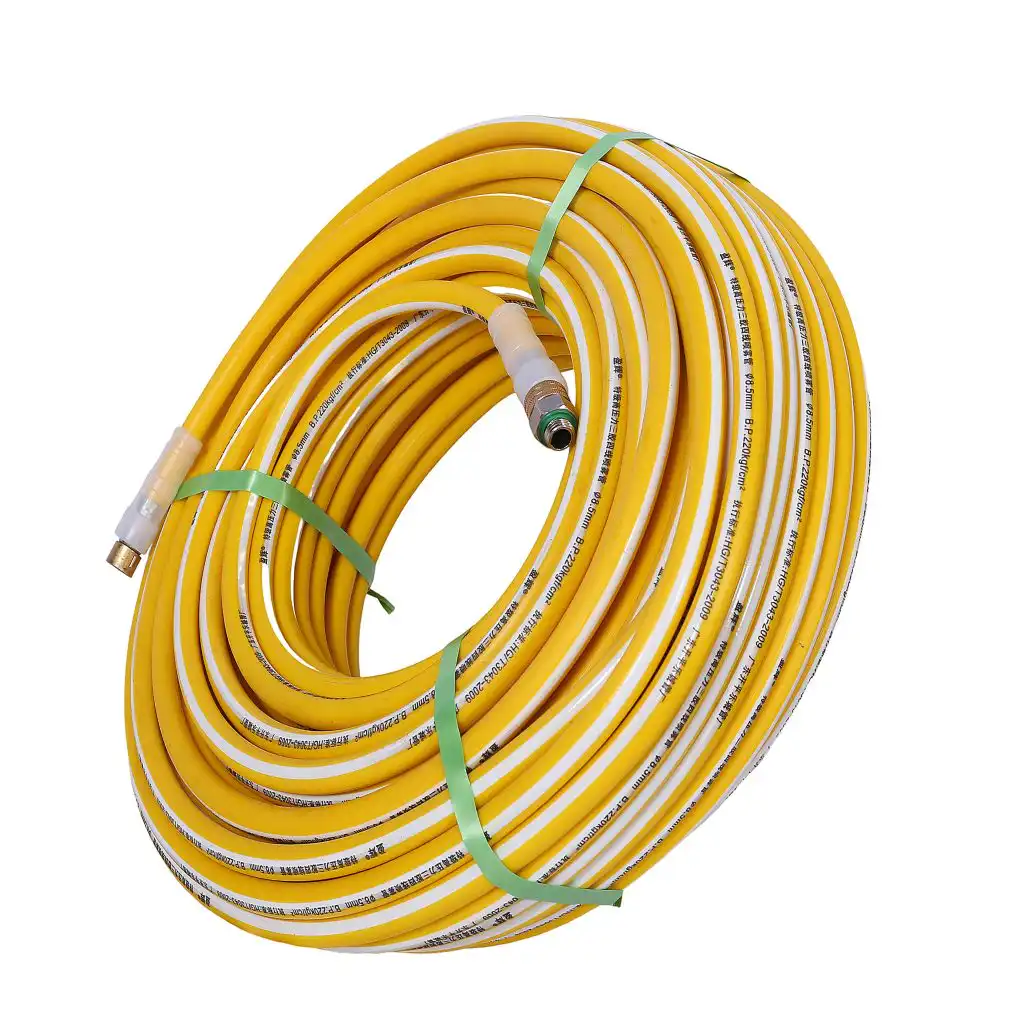

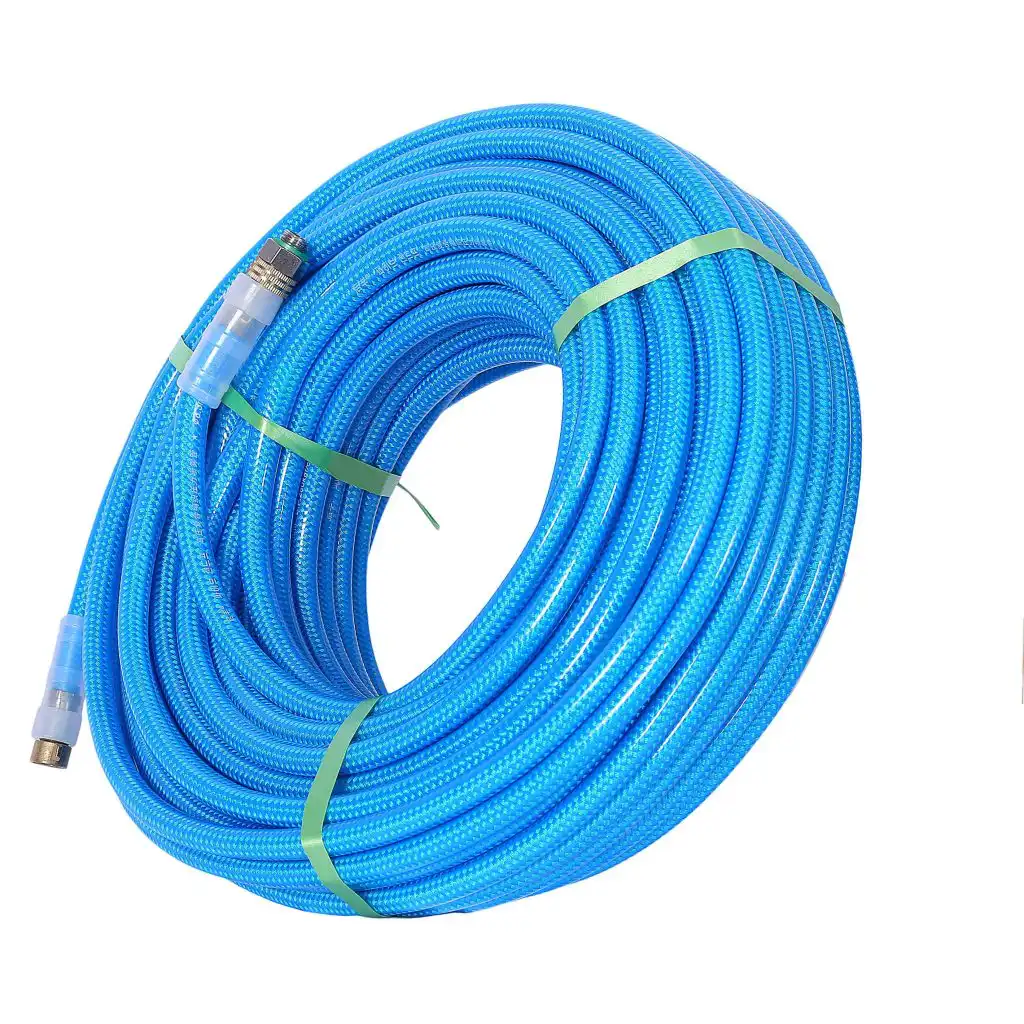

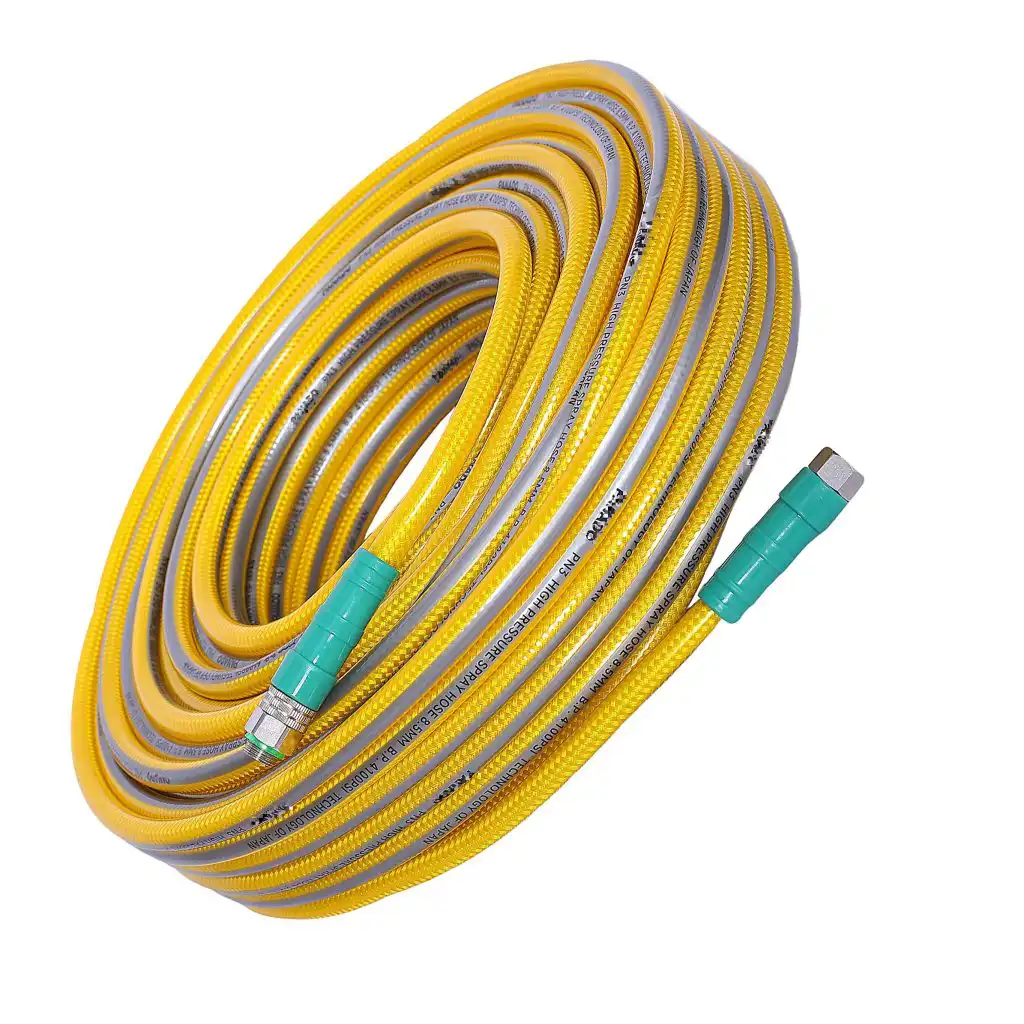

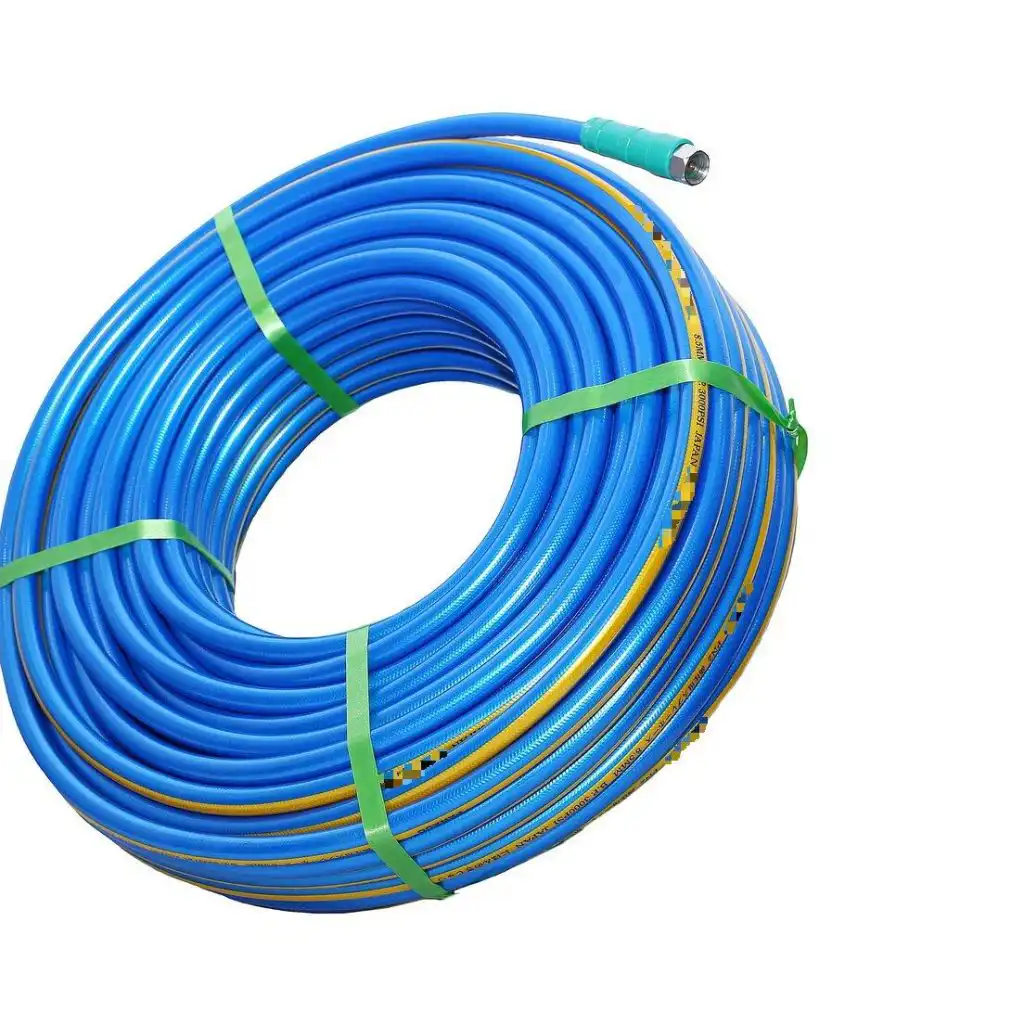

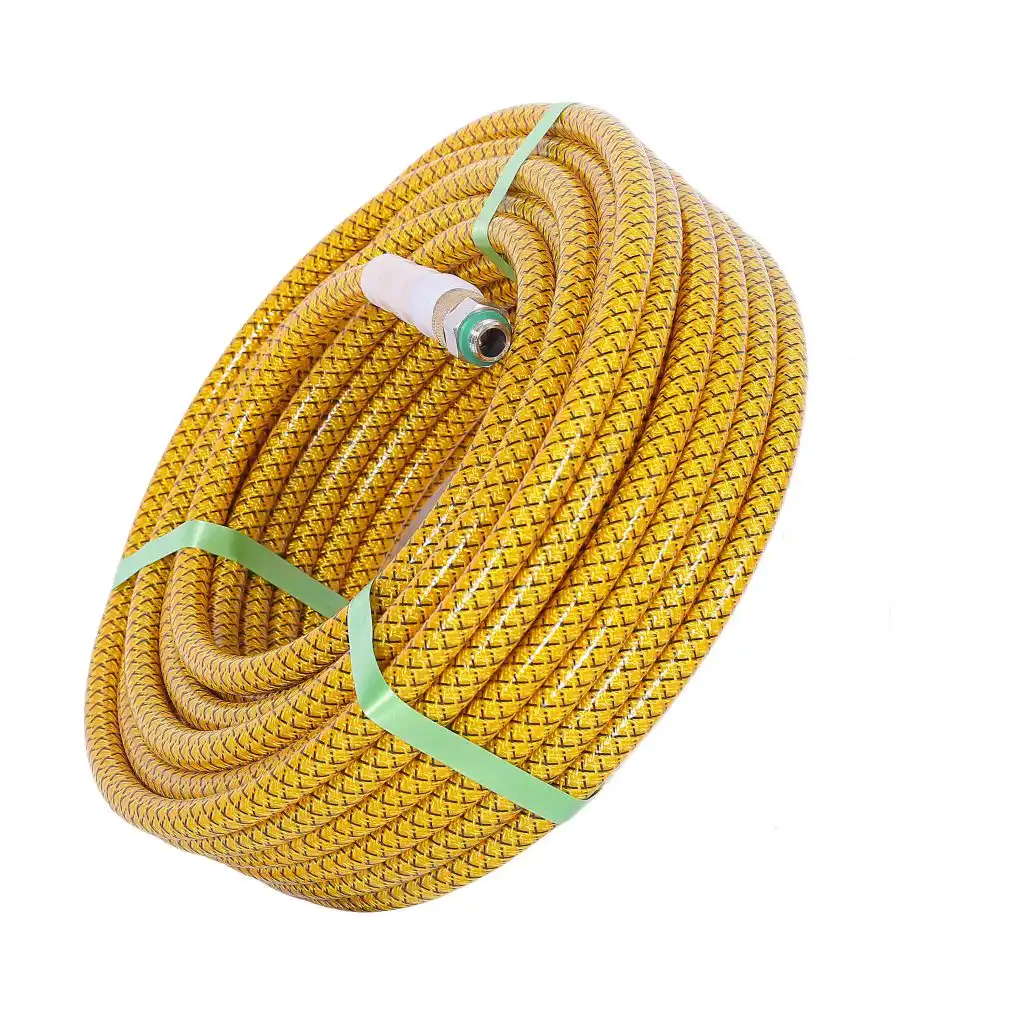

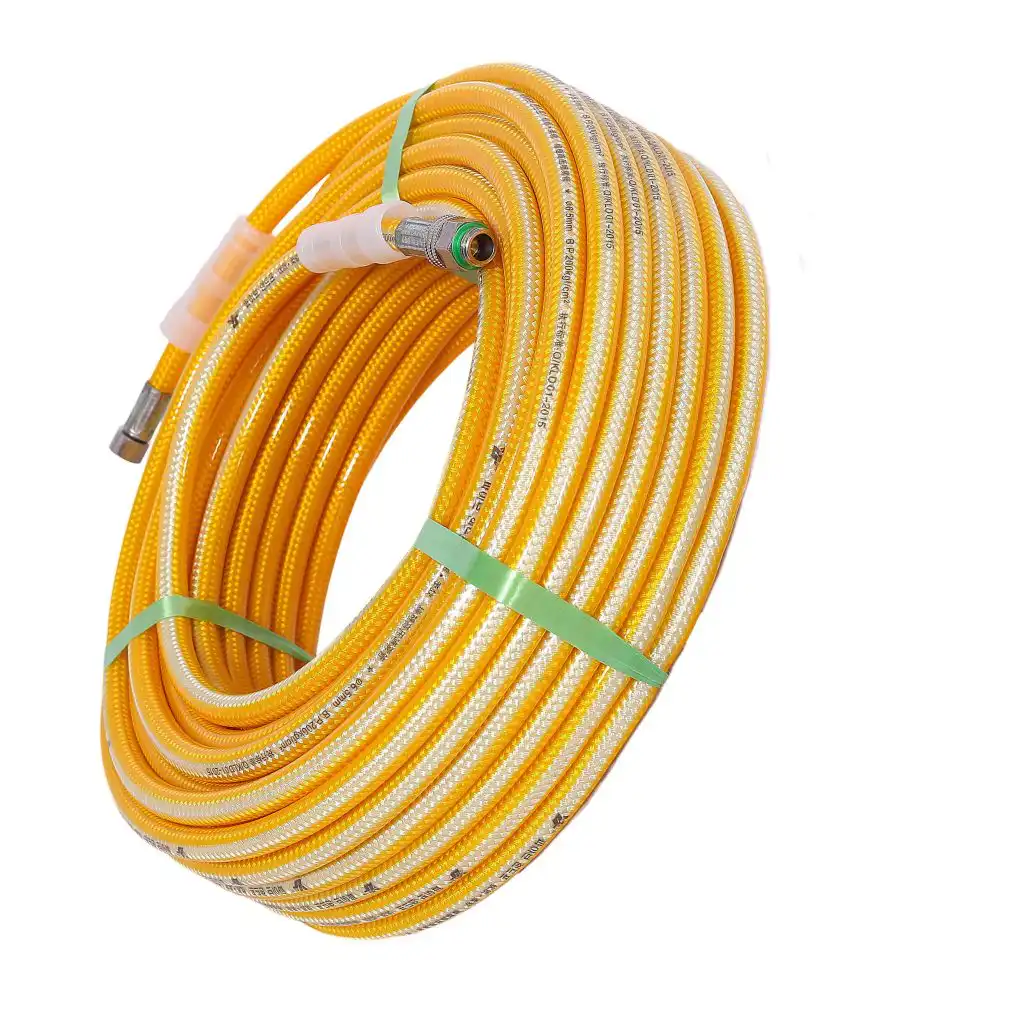

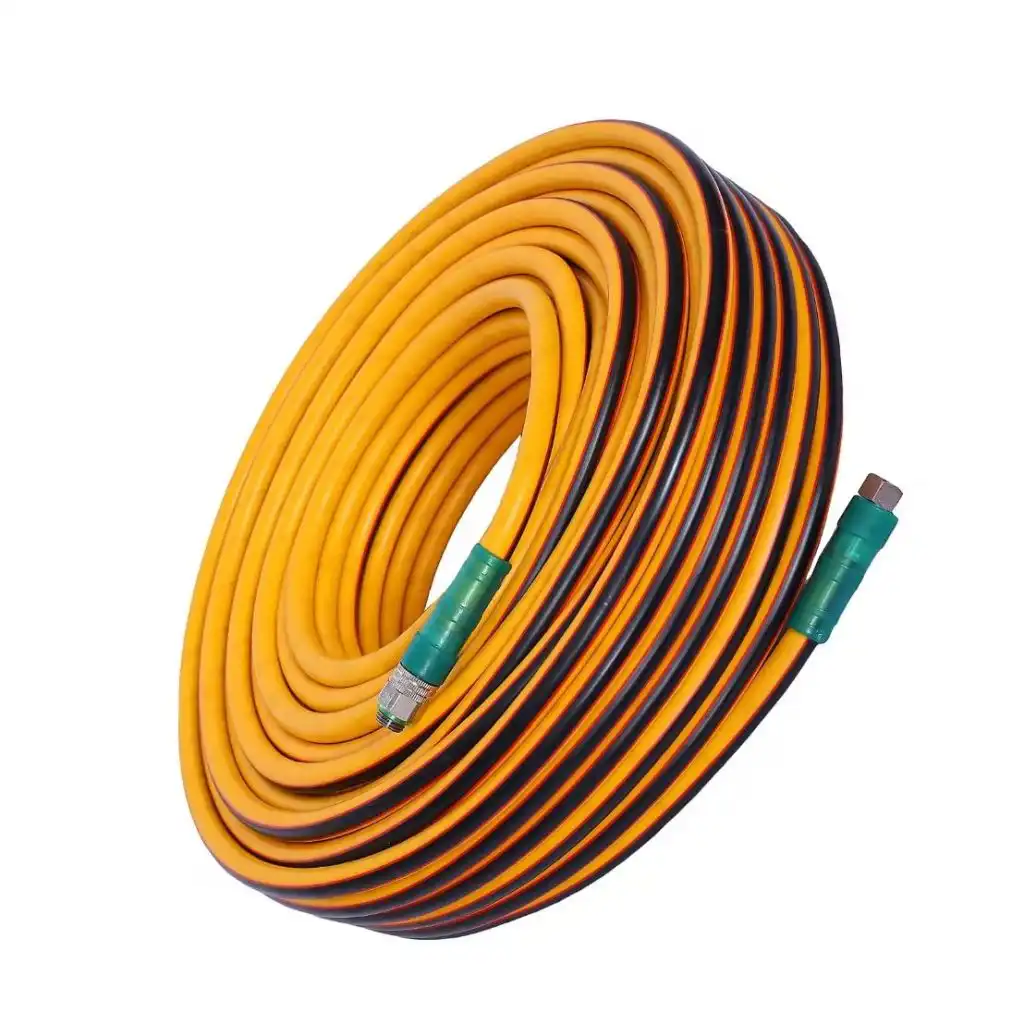

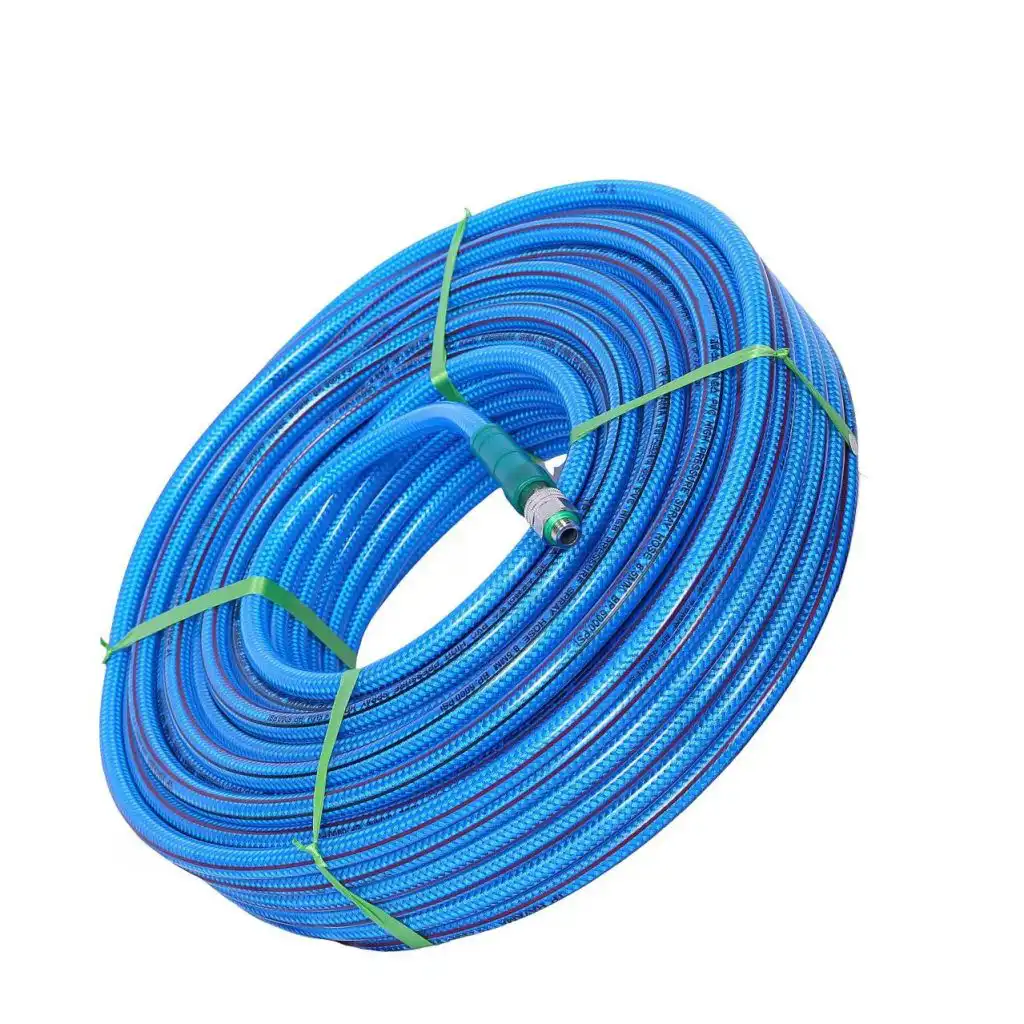

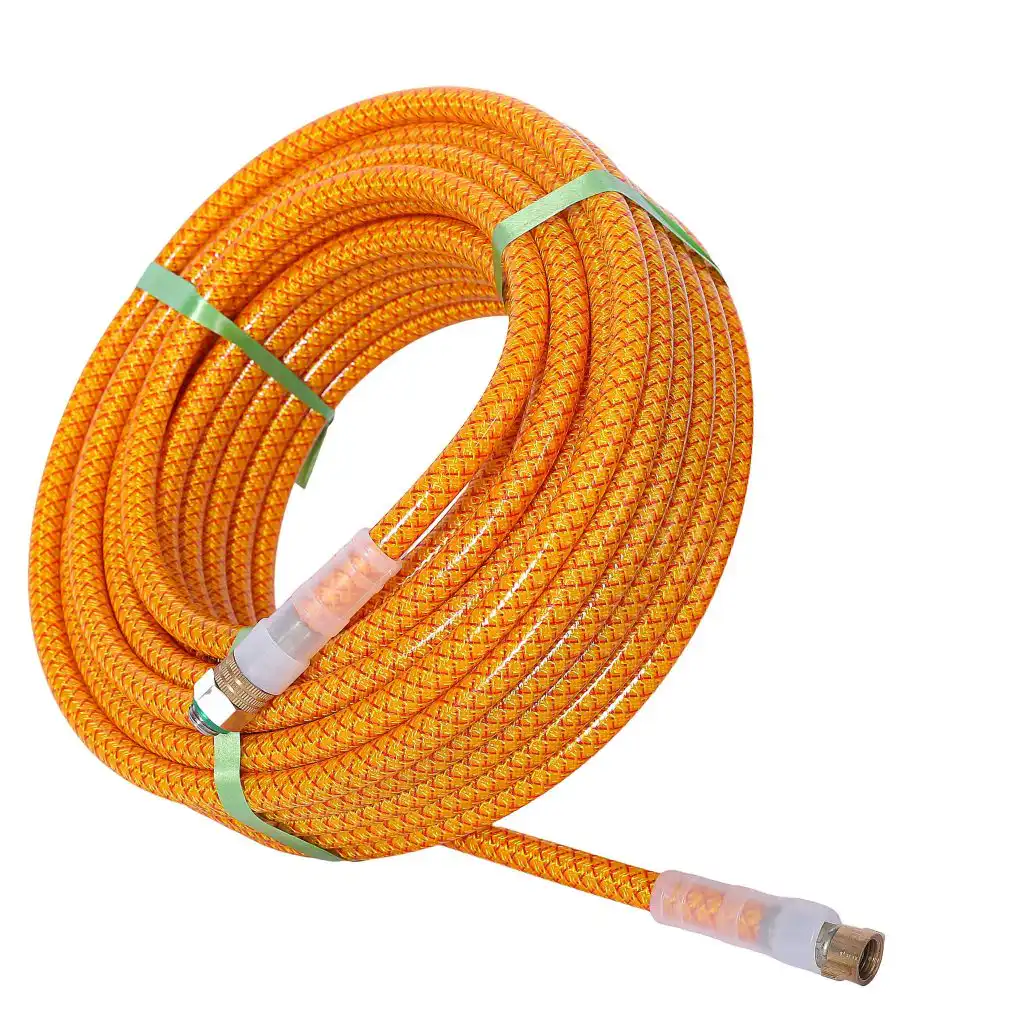

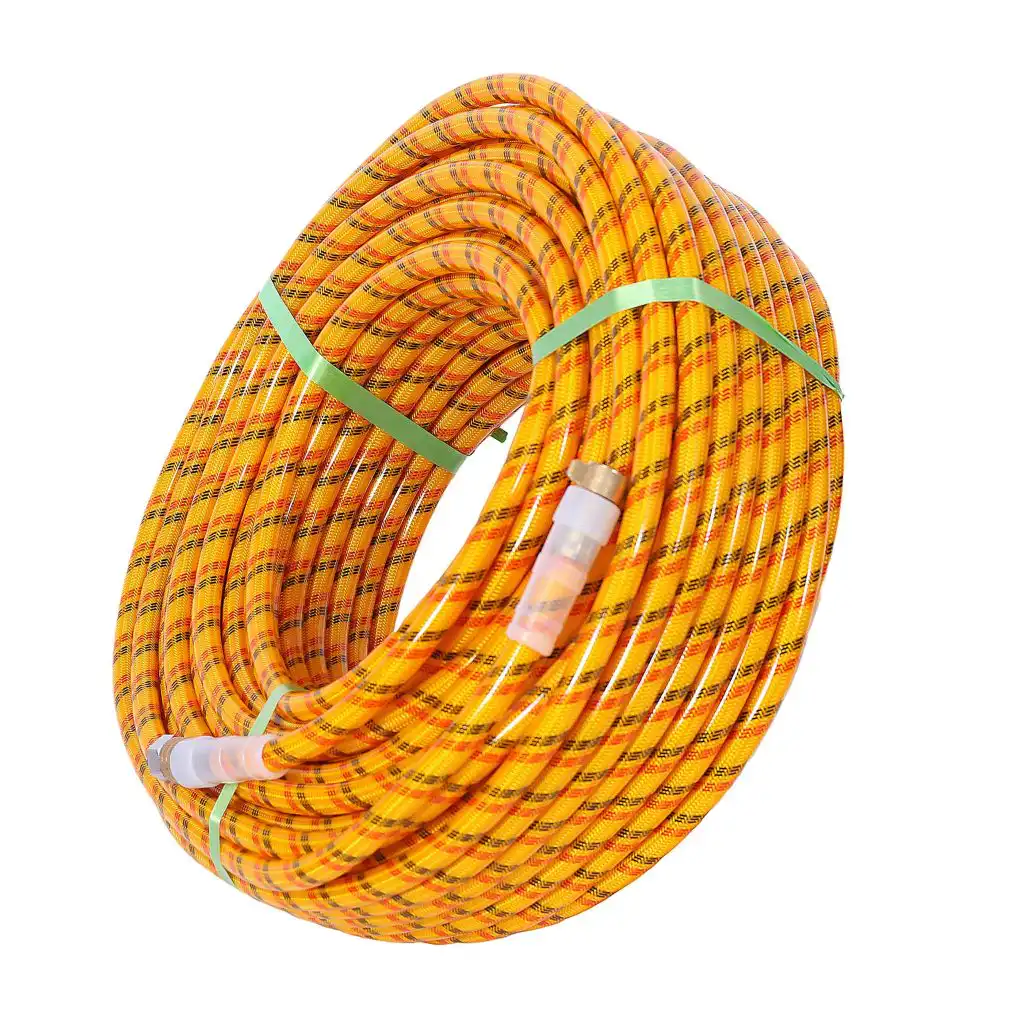

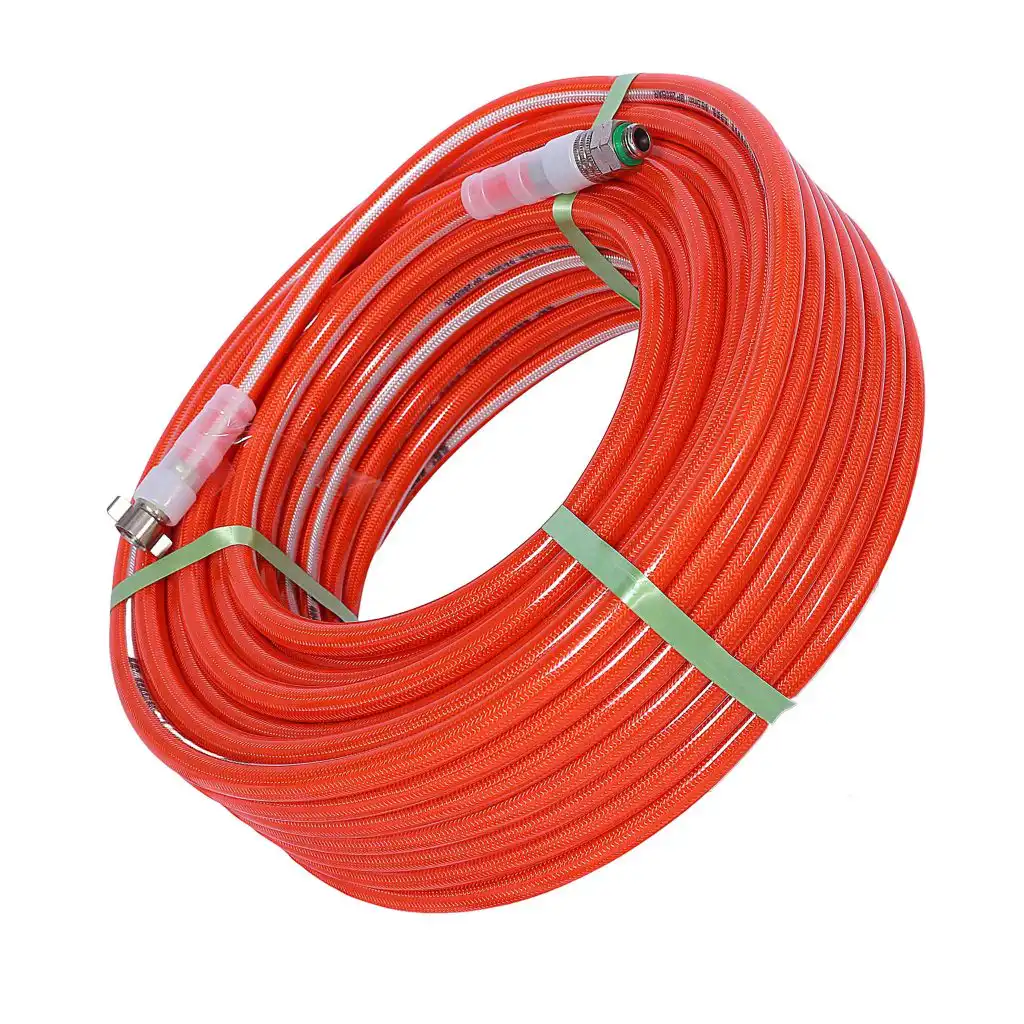

- Styles & Colors -

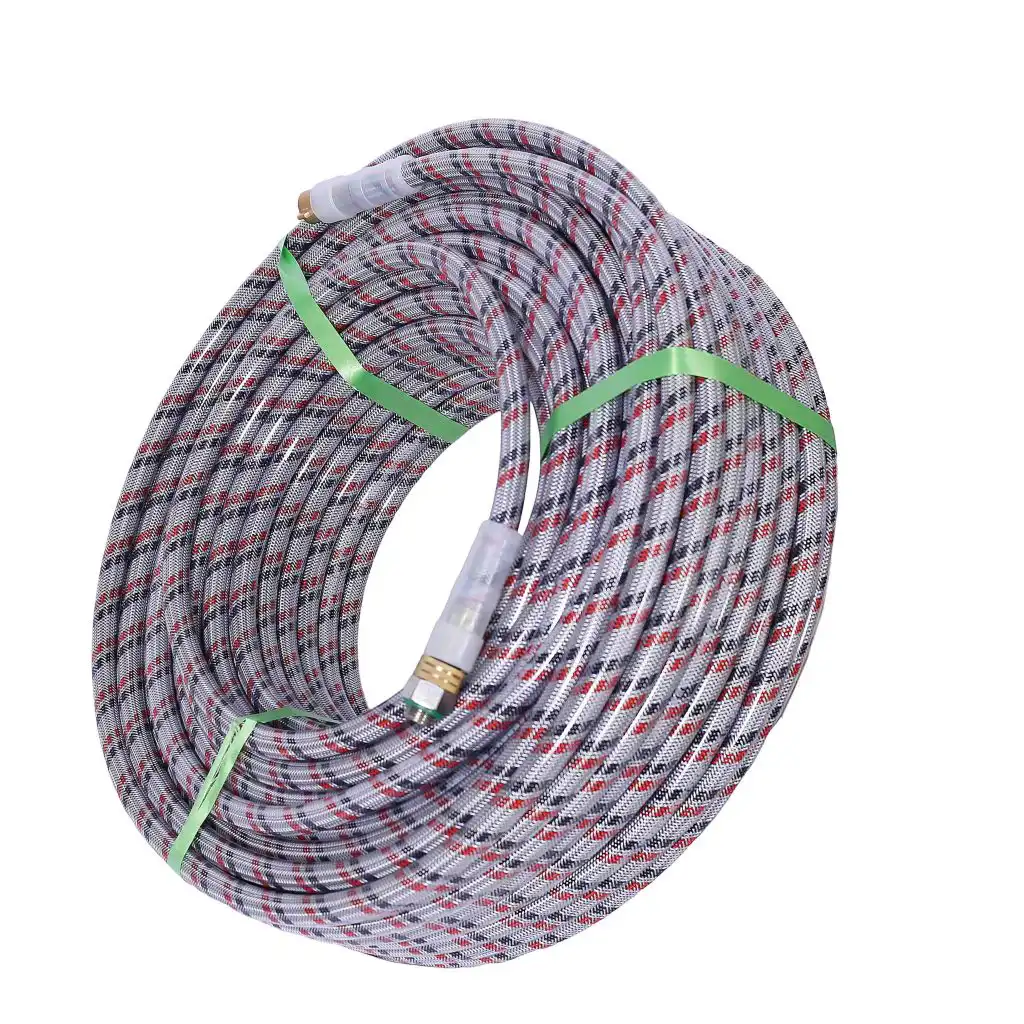

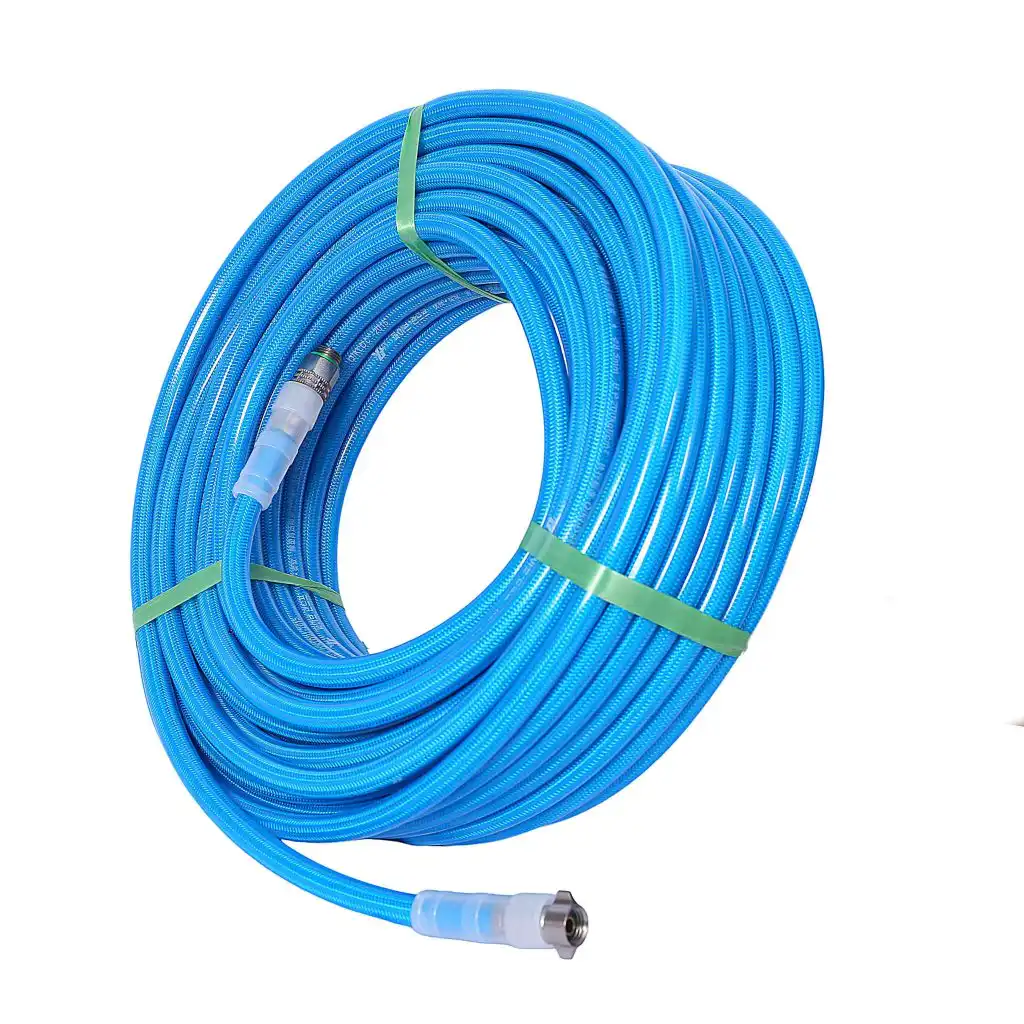

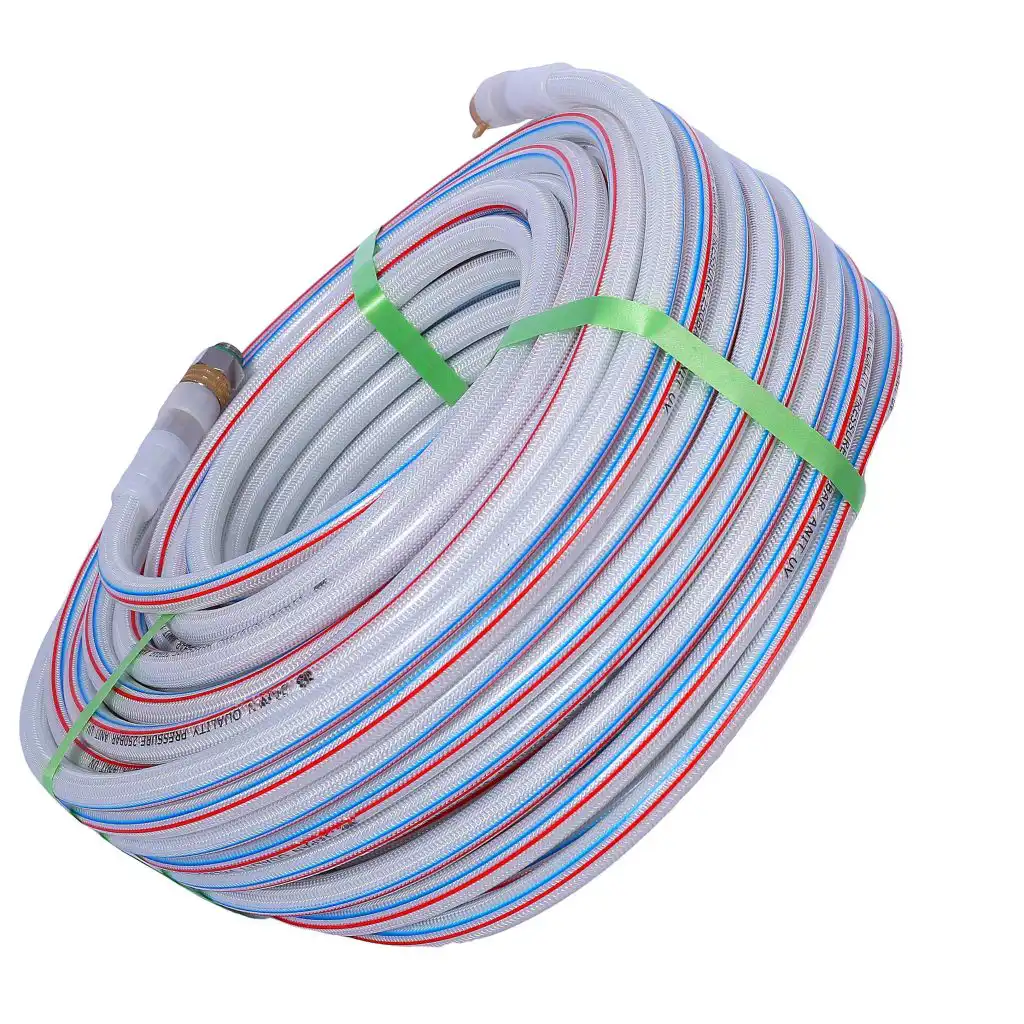

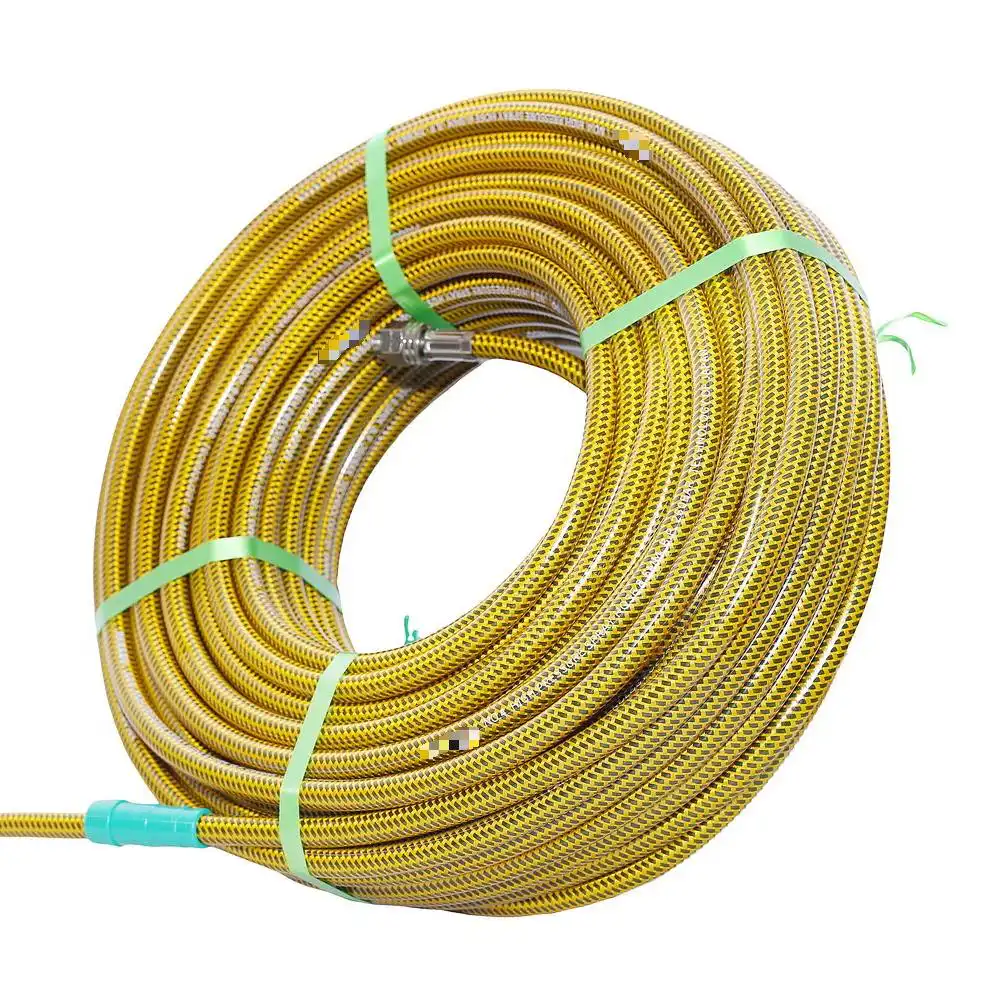

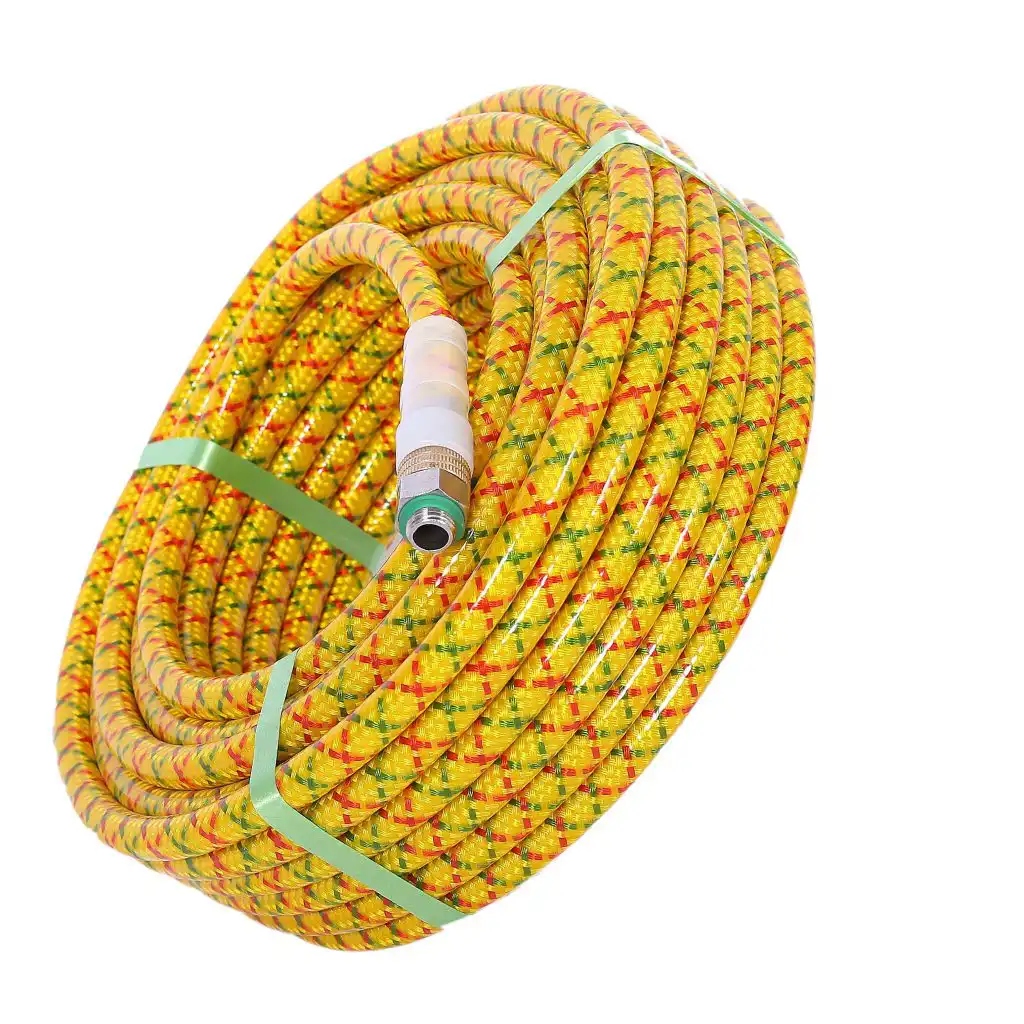

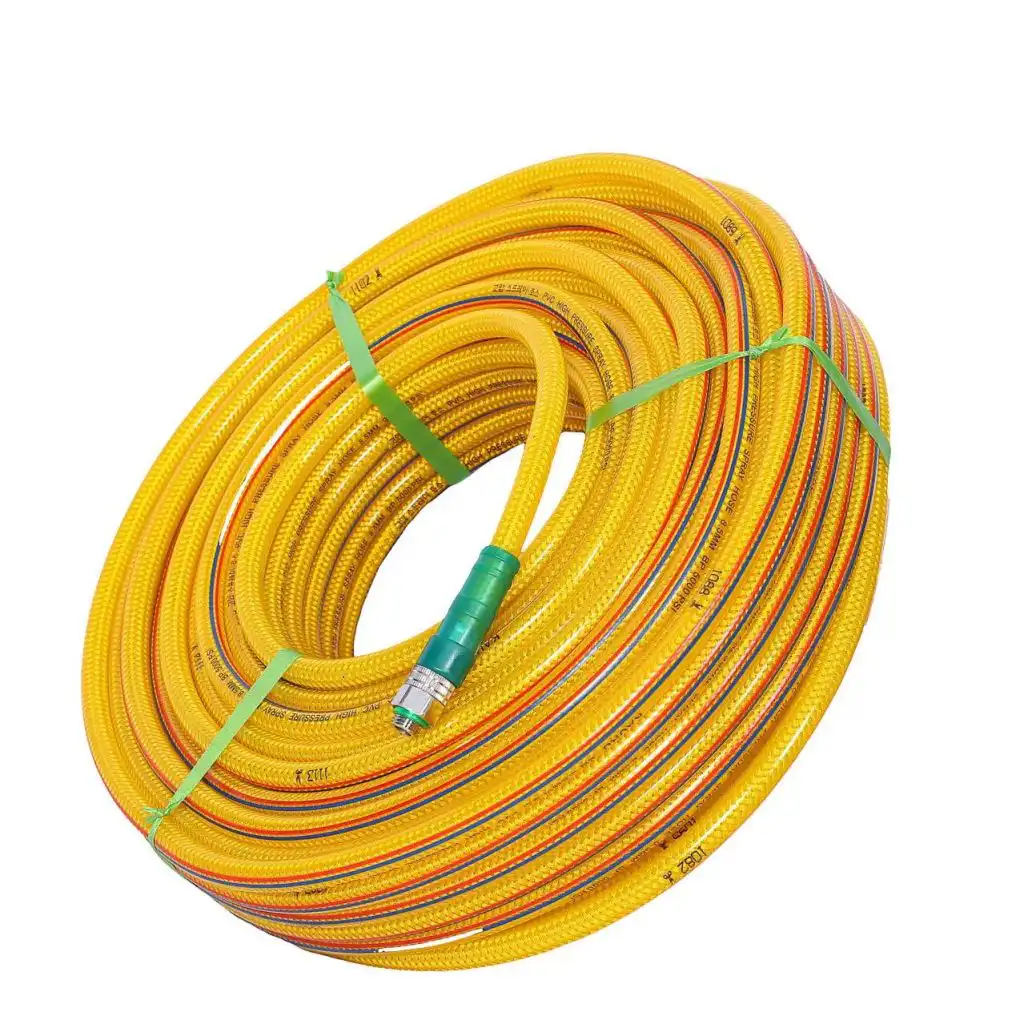

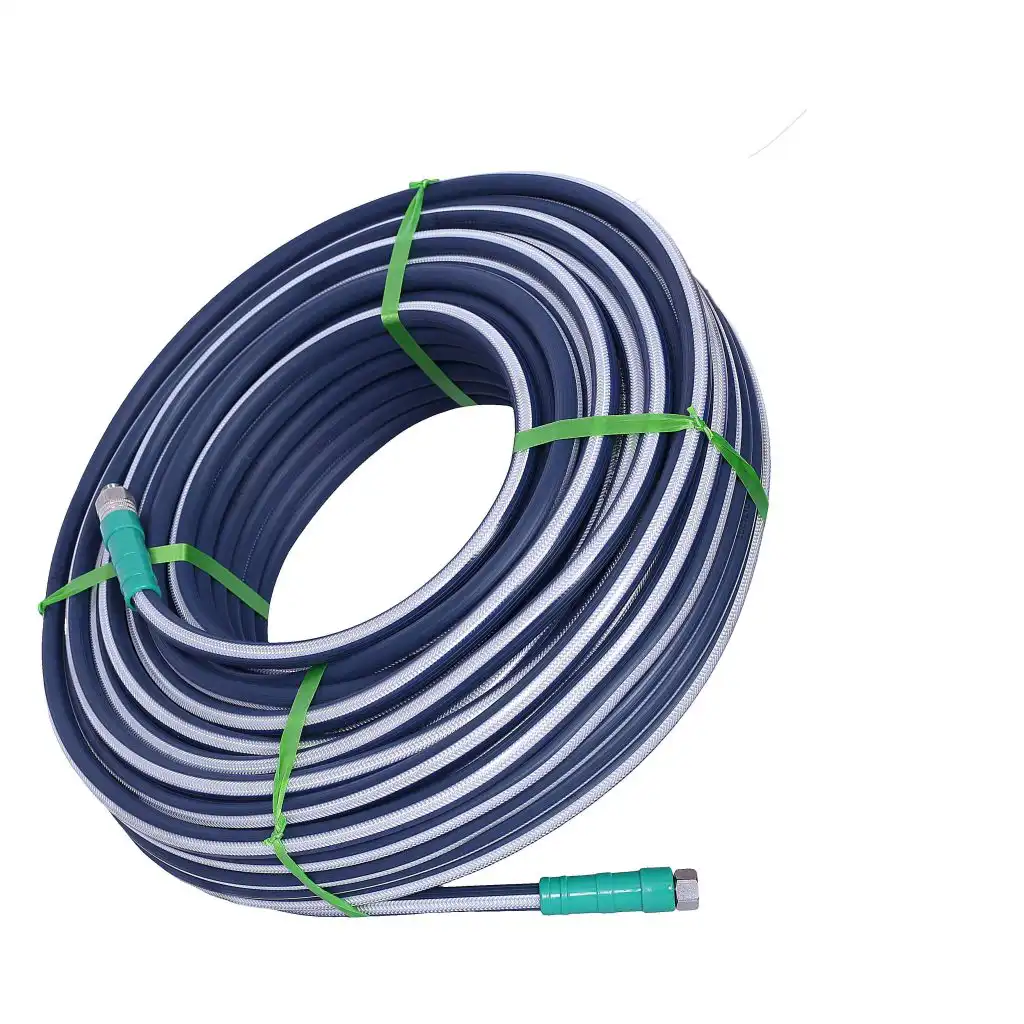

One hose, many looks
Single and triple braid, dozens of color combinations and custom printed markings — pick your market style.
- Customization & OEM -
Build the hose your market wants
We produce in our own factory with 20+ automated lines, so every element can be tuned to your specification.
Length & Weight
Custom coil lengths and weights
Colors & Braid
Single / triple braid, any color match
Printed Markings
Your brand, specs and logo printed on the hose
OEM / Private Label
Your packaging, labels and market positioning
Fittings & Assembly
Brass / stainless connectors, pre-assembly on request
Export Packaging
Coiled with tie straps, export-ready packing
- Product Application -
Where it works
Designed for agricultural spraying, orchard protection, greenhouse work, plant protection and high-pressure cleaning.
Agricultural Spraying
Field spraying, crop protection and pest control with backpack and knapsack sprayers.
Orchard & Crop Protection
Fruit tree and vegetable spraying — chemical-resistant bore for pesticide mixes.
Car & Pressure Washing
Connects to household high-pressure cleaners for vehicle and equipment washing.
Garden Watering
Greenhouse and garden irrigation, plant protection and general watering.
